Precision Parallel Winder

SAHM 411XE

[Translate to 03 - Chinesisch:] SAHM 411XE detail photo

Applications

  • Security tapes and holograms
    For banknotes, admission tickets, credit cards, etc.

  • Aluminium/PET compound foils
    For data cables automotove cables, etc.

  • PP adhesive tapes (tear tapes)
    For food packaging, corrugated cardboard packaging, etc.

  • Various applications
    Nonwoven materials for diapers, rubber bands for tires, copper tapes for solar panels, teflon tapes for sealing, prepreg tapes for textiles, etc.
[Translate to 03 - Chinesisch:] Different rollers of the SAHM 411XE







The optimal roller configuration, yarn guidance technology and surface coating utility can be selected in accordance with the winding material properties.

This guarantees that all types of winding material will behandled smoothly and precisely and correctly wound onto the bobbin.

Your advantages

Technical data

Package diameter   400 mm 500 mm 615 mm
Winding technology Precision parallel winding ✓ ✓ ✓
Drive Frequency controlled ✓ ✓ ✓
Frame 3-tier ✓ ✓
Frame 2-tier     ✓
Material width 1 to 25 mm; depending on the material up to 35 mm ✓ ✓
Material width 1 to 25 mm; depending on the material up to 50 mm     ✓
Winding speed Max. 300 m/min* ✓ ✓ ✓
Traverse length Adjustable up to 310 mm; optionally up to 410 or 510 mm ✓ ✓ ✓
Tube inside diameter 22, 76.2 or 152.4 mm* ✓ ✓ ✓
Yarn tension Electronically adjustable ✓ ✓ ✓
Bobbin types Cylindrical, cops, diabolo, pancake, step winding, delta stepwinding, multiple flange tubes ✓ ✓ ✓

Combination of all maximum values is not possible.                           * Others on request



Features and Options

FEATURE
Central process control unit (HMI touch screen) for input, display and storage of process and machine parameters
OPTION
Pneumatic mandrel (for various cylindrical tubes)
OPTION
Doffer (for loading onto a bobbin trolley for easy unloading)
OPTION
Label printing system (incl. SAHM IPC, software for label design and for management of printing orders)
OPTION
Remote support: Remote access and support for disgnosis and guidance during troubleshooting

Features Options
  • Individual drives
  • Individually controlled single-traversing
  • Decreasing yarn tension with increasing package diameter
  • Central process control unit (HMI touc screen) for input, display and storage of process and machine parameters
  • Alarm management (e.g. yarn break, bobbin changeover)
  • Different roll shapes






  • Alternative surface coating of the rollers
  • Pneumatic mandrel (for various cylindrical tubes)
  • Single yarn tension
  • Doffer (for loading onto a bobbin trolley for easy unloading)
  • Bobbin trolley (adapted to the frame layout of the SAHM 441XE)
  • Interface to DCS (OPC-UA)
  • Label printing system (incl. SAHM IPC, software for label design and for management of printing orders)
  • Recipe database (incl. SAHM IPC)
  • Remote support: Remote access and support for diagnosis and guidance during trouble shooting

Frame Units (examples)

Integrated solutions in slitting and winding

SAHM winding machines are known around the world for their outstanding precision, trend-setting technology and durable, low-maintenance designs. These are the characteristics that also make them the perfect choice for use in the converting industry.



In cooperation with well-known partners, we provide our customers with comprehensive, integrated solutions in the field of slitting and winding technology. As project leader, SAHM can take responsibility for the complete coordination and communication between the involved companies. For our customers, this means: a single contact partner for the reliable delivery of complete technology solutions.

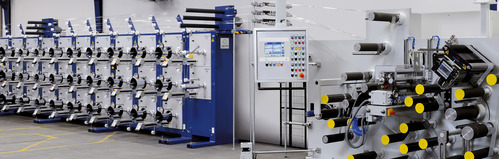

SAHM 411XE winders with an SSM 400 slitting machine from Adolf Müller GmbH & Co. KG
